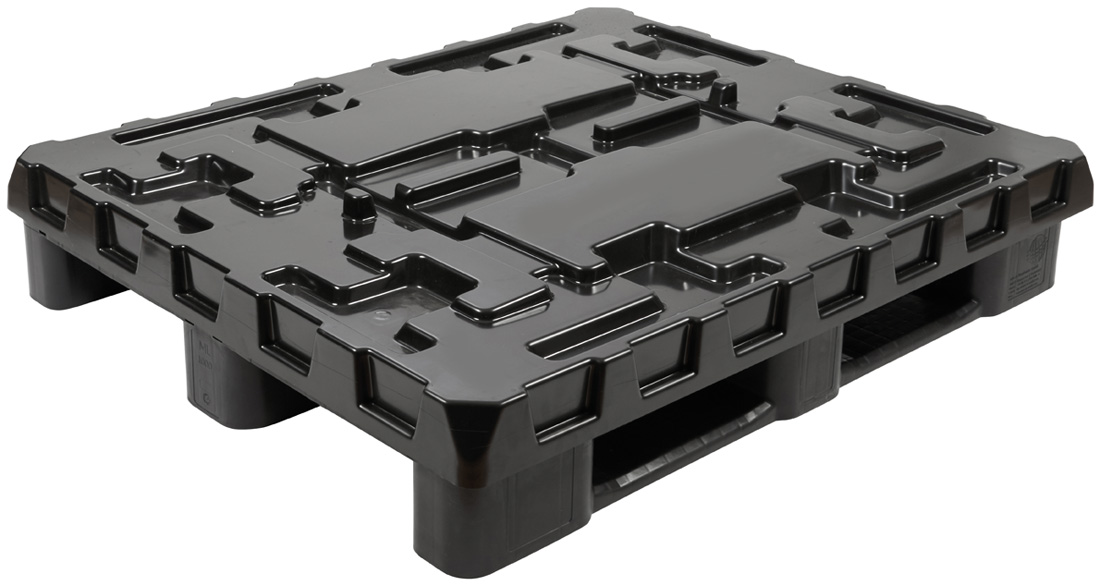

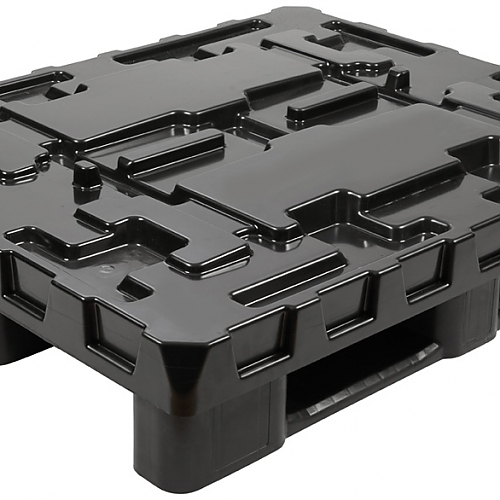

Medium pallets are robust all-rounders.
| External dimensions: | 1,200 x 800 x 155 mm (LxWxH) |
| Load capacity: | 1,250 kg dynamic / 5,000 kg static / 650 kg high rack (unwelded) / 800 kg high rack (runners welded) |
| Version: | 3 runners unwelded |
| Unit weight: | 16 kg unwelded / 18 kg with welded runners |
| Material: | HD-PE regranulate |
| Colour: | black |
| Options: | with welded runners, with or without perimetric rims, with or without central rims, central runner completely closed |
Medium pallets are robust all-rounders. Thanks to the many available options, our Multi-Line medium pallet series is versatile and multifunctional, with a load capacity that falls between our light and hygienic pallets. The Intech Multi-Line is suitable for global exports and with steel reinforcements optimally equipped for use in high-bay warehouses. The gridded multiple openings on the upper deck can be used to set up displays or to attach plastic wedges for load securing.
| Item No.: | ML-OD-12080-10 |
| External dimensions: | 1,200 x 800 x 145 mm (LxWxH) |
| Load capacity: | 1,300 kg dynamic / 5,000 kg static / 550 kg high rack |
| Version: | 3 runners unwelded, open deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 11 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, two-sided (top and bottom of the deck, up to 14 pieces, 8 short, 6 long), corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-OD-12080-10-4S |
| External dimensions: | 1,200 x 800 x 145 mm (LxWxH) |
| Load capacity: | 1,600 kg dynamic / 7,000 kg static / 1,300 kg high rack |
| Version: | 3 runners unwelded, open deck, 4 steel bars |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 13,7 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, two-sided (top and bottom of the deck, up to 14 pieces, 8 short, 6 long), corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-GD-12080-10-2K |
| External dimensions: | 1,200 x 800 x 145 mm (LxWxH) |
| Load capacity: | 1,300 kg dynamic / 5,000 kg static / 550 kg high rack |
| Version: | 2 runners unwelded, closed deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 12.5 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, one-sided (bottom of the deck, up to 14 pieces), corrosion-free steel bars in the pallet deck (2 pieces), 2 or 3 runners, double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-GD-12080-10-3K |
| External dimensions: | 1,200 x 800 x 145 mm (L x W x H) |
| Load capacity: | 1,500 kg dynamic / 6,000 kg static / 650 kg high rack |
| Version: | 3 runners unwelded, closed deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 15.5 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, one-sided (bottom of the deck, up to 28 pieces), corrosion-free steel bars in the pallet deck (2 pieces), 2 or 3 runners, double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-OD-120100-10 |
| External dimensions: | 1,200 x 1,000 x 145 mm (LxWxH) |
| Load capacity: | 1,300 kg dynamic / 5,000 kg static / 550 kg high rack |
| Version: | 3 runners unwelded, open deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 12.8 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, two-sided (top and bottom of the deck, up to 28 pieces, 16 short, 12 long), corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-OD-120100-10-4S |
| External dimensions: | 1,200 x 1,000 x 145 mm (LxWxH) |
| Load capacity: | 1,600 kg dynamic / 7,000 kg static / 1,300 kg high rack |
| Version: | 3 runners unwelded, open deck, 4 steel bars |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 15.5 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, two-sided (top and bottom of the deck, up to 28 pieces, 16 short, 12 long), corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-GD-120100-10-2K |
| External dimensions: | 1,200 x 1,000 x 145 mm (LxWxH) |
| Load capacity: | 1,300 kg dynamic / 5,000 kg static / 550 kg high rack |
| Version: | 2 runners unwelded, closed deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 14.2 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, one-sided (bottom of the deck, up to 28 pieces), corrosion-free steel bars in the pallet deck (2 pieces), 2 or 3 runners, double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
| Item No.: | ML-GD-120100-10-3K |
| External dimensions: | 1,200 x 1,000 x 145 mm (LxWxH) |
| Load capacity: | 1,500 kg dynamic / 6,000 kg static / 650 kg high rack |
| Version: | 3 runners unwelded, closed deck |
| Temperature range: | -40 °C to +70 °C |
| Unit weight: | 15.5 kg |
| Material: | HD-PE regranulate / HD-PE virgin (grey) |
| Colour: | black or grey |
| Options: | with or without safety rims (7 mm or 22 mm), rubber blocks for anti-slipping, one-sided (bottom of the deck, up to 28 pieces), corrosion-free steel bars in the pallet deck (2 pieces), 2 or 3 runners, double rims for ring attachment (foldable large load carrier), plastic wedges for load securing, RFID transponder, with ESD additives to prevent static charge, reinforced material (increasing the load capacities by 50 kg) |
Versions and load capacities
> Download

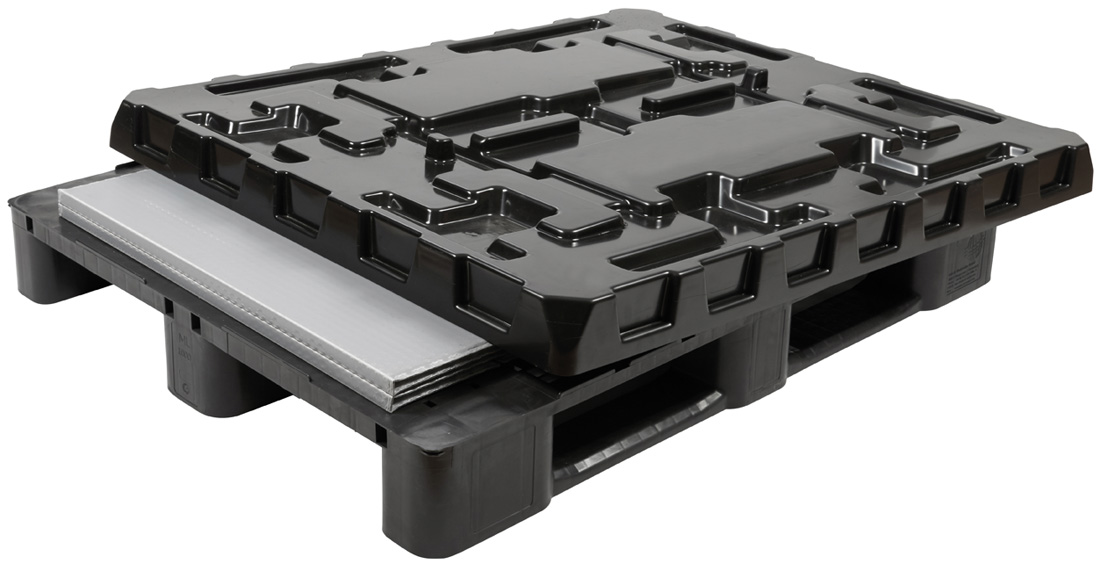

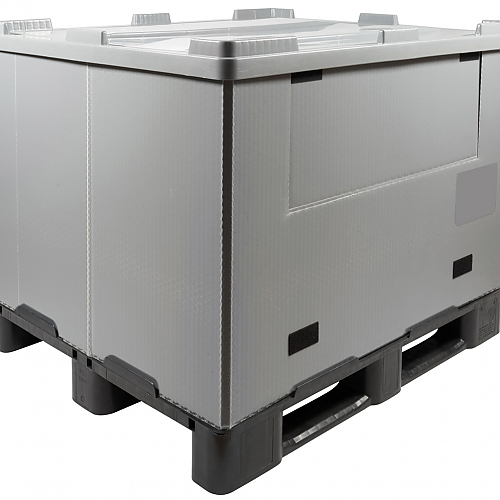

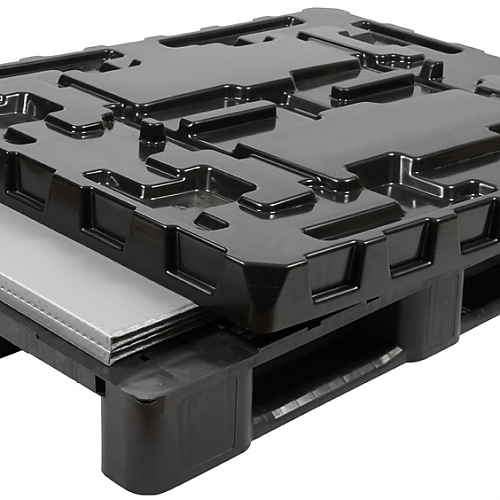

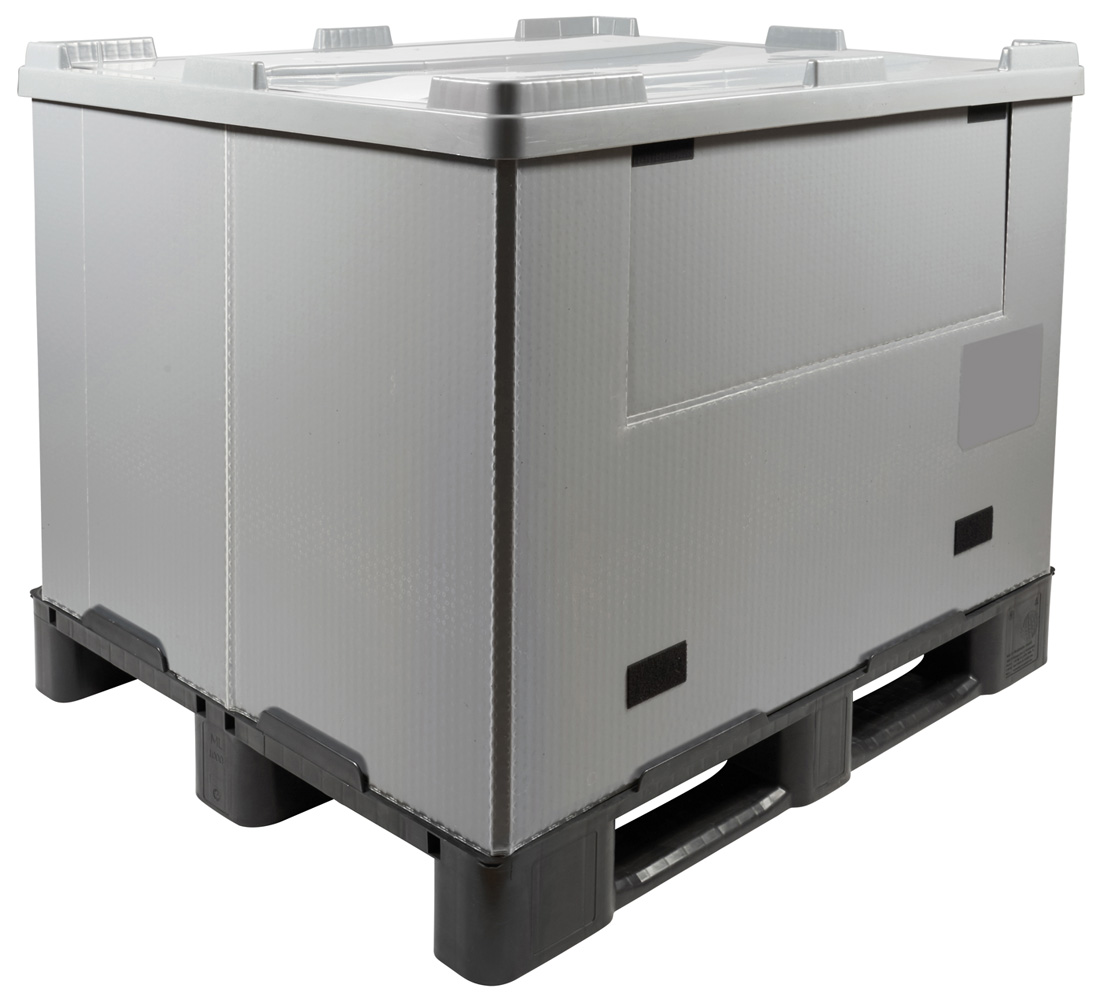

Our folding large load carriers in the Multi-Line series were developed primarily with the goal of making industrial cargo transport more secure, efficient, and environmentally-friendly.
Thanks to their folding design, our Multi-Boxes have up to 80 % less volume, and can significantly reduce transportation and storage costs.
Intech Multi-Boxes are perfectly tailored to the needs of the modern circular economy:
| Item No.: | MB-12080 |
| External dimensions: | 1,200 x 800 x 925 mm (LxWxH) |
| Internal dimensions: | 1,160 x 760 x 780 mm (LxWxH) |
| Version: | entirely closed |
| Material: | PP (ring) |
| Colour: | grey (ring) |
| Options: | carrier pallet selectable from the Multi-Line series, various ring heights available, ring with unloading flap on the long side, available with system cover, corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), RFID transponder |
| Item No.: | MB-120100 |
| External dimensions: | 1,200 x 1,000 x 925 mm (LxWxH) |
| Internal dimensions: | 1,160 x 960 x 780 mm (LxWxH) |
| Version: | entirely closed |
| Material: | PP (ring) |
| Colour: | grey (ring) |
| Options: | carrier pallet selectable from the Multi-Line series, various ring heights available, ring with unloading flap on the long side, available with system cover, corrosion-free steel bars in the pallet deck (2, 3 or 4 pieces), RFID transponder |
